Energyline Heaphy

Louvre pendant

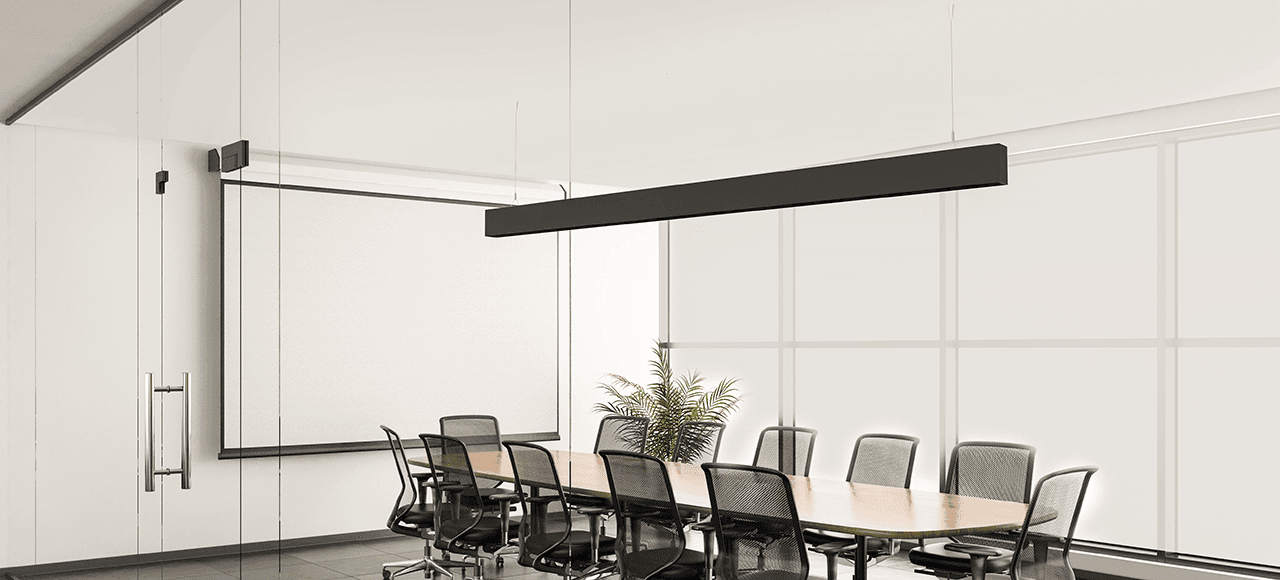

Heaphy product hero image

Product Details

The Heaphy pendant is wire suspended with UGR Louvre in a 75mm wide profile. Designed to enhance meeting room spaces, the multi cell louvre delivers a visually comfortable space for people to enjoy, with square louvre openings achieving excellent cut off angles below 45°.

technical spec

UGR Louvre (CRI80)

Optional Ceiling Wash for indirect lighting

Efficacy up to 110 lm/W

3000K or 4000K options

DALI or Casambi options


1750mm or 2310mm length options

75mm wide x 82mm high (direct only)

75mm wide x 120mm high (direct/indirect)

Black or White textured powdercoated aluminium

suspension & power feed

Two one-meter wire suspensions points

Cable entry 120mm from end

2.5 meter 5 core transparent flex


10 year warranty

IP4x protection

Lifetime driver >100,000 hrs

Product Selector


IDDistributionTotal outputcctcontrolcolour
02.00014UGR Louvre1750 lm (1000 lm/m)3000Kcasambi wirelessblack
02.00022UGR Louvre1750 lm (1000 lm/m)3000KDALIblack
02.00055UGR Louvre1750 lm (1000 lm/m)3000Kcasambi wirelesswhite
02.00063UGR Louvre1750 lm (1000 lm/m)3000KDALIwhite
02.00097UGR Louvre3500 lm (2000 lm/m)3000Kcasambi wirelessblack
02.00105UGR Louvre3500 lm (2000 lm/m)3000KDALIblack
02.00139UGR Louvre3500 lm (2000 lm/m)3000Kcasambi wirelesswhite
02.00147UGR Louvre3500 lm (2000 lm/m)3000KDALIwhite
